36V 48V 1000W ebike Electric Bicycle 20″ 24″ 26″ 28″ 29er 700C Front Wheel or Rear Wheel ebike Electric Bicycle Conversion Kits

Very Important Attention:
1. Wheel Size Options: 20″, 24″, 26″, 27.5″, 700C, 28″, 29er (these size are spoke wheels), 14″ 16″ 18″ (casted wheel, not shown as pictures, for more pictures and informatin feel free to contact us)
2. Wheel Options: Front Wheel or Rear Wheel (7-speed freewheel for rear)
3. If your bike is always overloaded or climbing hills/slope continuously, you must set LCD’s C5 value to 8 to avoid overheat damage to the controller.
4, Battery not include in this kit
5. 28″(ISO BSD:635MM) 700C/29″(ISO BSD:622MM)

Parts Including in this kit:

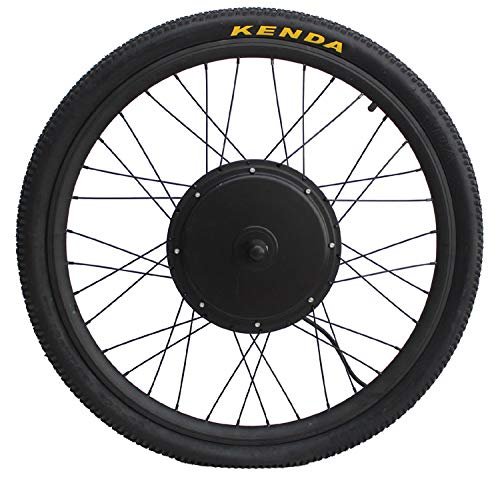

Threaded Motorized Wheel
Controller + Controller Bag
2 Brake Levers
Twist Speed Throttle with Electric Key Lock 2ea. Handlebar Grips
5-level PAS Control LCD Display
Pedelec Sensor
Battery Connecting Cable

Motor Performance:
1) High Motor Efficiency: >85%
2) Speed: 0-55km (different wheel size, road&weather condition and rider’s weight will have different speed)
3) Hub Width (dropout): 100mm front or 135mm rear threaded hub motor
4) Rear Wheel with 7-speed freewheel (Single-speed Gear or 6 Speed Gear is availabe as well, free free to contact us)
5) Reinforced Bike rim special for e-bike
6) Brake: support 6-hole type disc brake

1000W Controller Performance:
1) Rated Voltage: 36V or 48V (Universal)
2) Min. Voltage: DC30V/40±0.5V
3) Max. Current: 30±1A
4) Speed set: 1-4.2V
5) Brake Input: Low-Level
6) 12 MOSFET
7) Color: Silver
8) Size: 193*84*43mm

LCD Performance:
1) 24V, 36V or 48V universal
2) Function: 5-speed level PAS, turn on/off PAS, speed display, speed limit, Cruise, 5-speed level throttle, max current setting, optional Regenerative braking function
3) Size: 96x65x20mm
